Photographic Field Record

Warehouse MDF and IDF Cabling Buildout

Q: Why are the client name and project location withheld?

Infrastructure photographs can reveal facility layouts, operating locations, device placement, and security-relevant details. SRS Networks publishes only the field evidence approved for public use and withholds the customer, address, drawings, quantities, schedules, and closeout records unless release is specifically authorized.

Q: What is the difference between an MDF and an IDF?

The main distribution frame is the primary telecommunications room or handoff point for a facility. Intermediate distribution frames extend connectivity closer to devices in other areas of a large building. Fiber commonly connects those rooms, while copper horizontal cabling serves endpoints from each local IDF.

Q: Why do warehouses need multiple communications spaces?

Ethernet copper runs have distance limits, and warehouses can span long floor plates with high racks and separated operating zones. Properly located IDFs keep horizontal cabling within design limits, create serviceable distribution points, and allow the fiber backbone to carry traffic across the larger facility footprint.

Q: What should warehouse cabling closeout include?

The project documents should define the required evidence. A typical closeout may include matched cable and port labels, native test-result files, marked or as-built drawings, rack elevations, pathway records, completion photographs, resolved punch items, and applicable product or warranty documentation.

Q: Do the photographs prove certification test results?

No. Photographs can establish visible installation conditions, labeling, routing, racks, and termination work, but they do not prove electrical or optical performance. Certification claims should be supported by the native copper or fiber test records required by the project acceptance criteria.

Q: Can SRS Networks execute warehouse cabling in multiple states?

Yes. SRS Networks coordinates structured cabling and fiber deployments across the 48 contiguous states, Alaska, and Hawaii. Multi-site programs can use one scope, reporting structure, exception process, and closeout standard across participating facilities.

Q: How should a buyer start a similar warehouse project?

Start with available floor plans, MDF and IDF locations, endpoint or device counts, pathway constraints, ceiling heights, lift requirements, operating windows, specified cable media, testing requirements, labeling conventions, and turnover expectations. SRS can review those inputs and identify what still requires a field survey.

An anonymized field record of structured cabling installed across a high-bay warehouse environment, from overhead pathways and communications racks to copper termination and fiber management.

Client, location, schedule, quantities and commercial terms are withheld. This page describes only work visible in the released photographs; it does not assign unsupported performance metrics to the project.

Discuss a Warehouse Project Structured Cabling Services

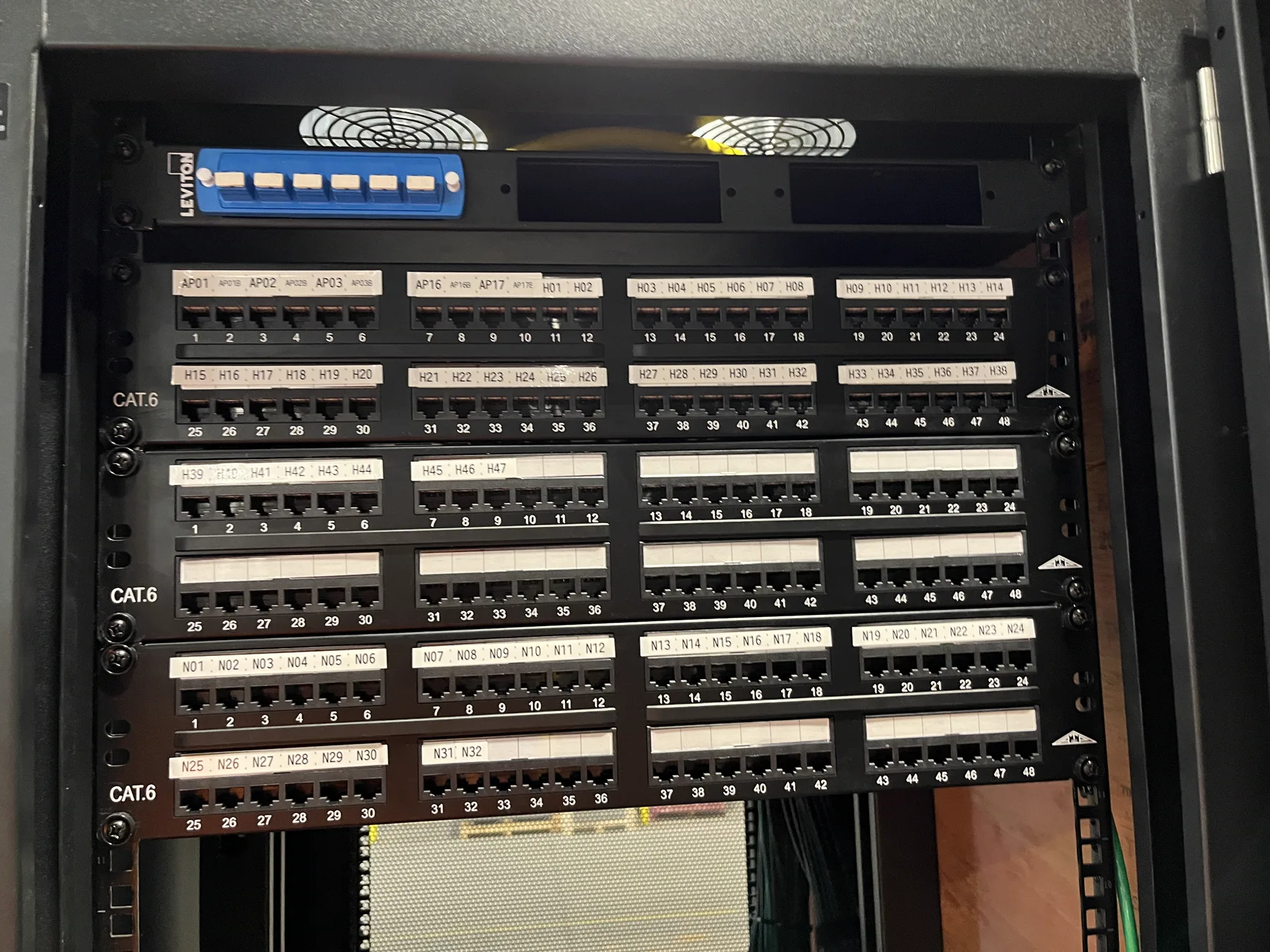

Completed warehouse communications rack with labeled copper patch panels — Released field photograph: completed patch-panel infrastructure.

Observed Scope

What the project photographs establish

Warehouse cabling has to connect distributed work areas while remaining accessible around structure, storage systems and equipment. The released images document an installation spanning the facility pathway and the communications spaces at each end.

High-bay warehouse pathway routing

MDF and multiple IDF work areas

Copper patch-panel termination

Fiber enclosure and backbone management

Rack and cabinet installation

Cable dressing, bonding and identification

Installation Sequence

From facility pathway to documented handoff

The photographs are arranged as an evidence sequence, not as decorative stock imagery.

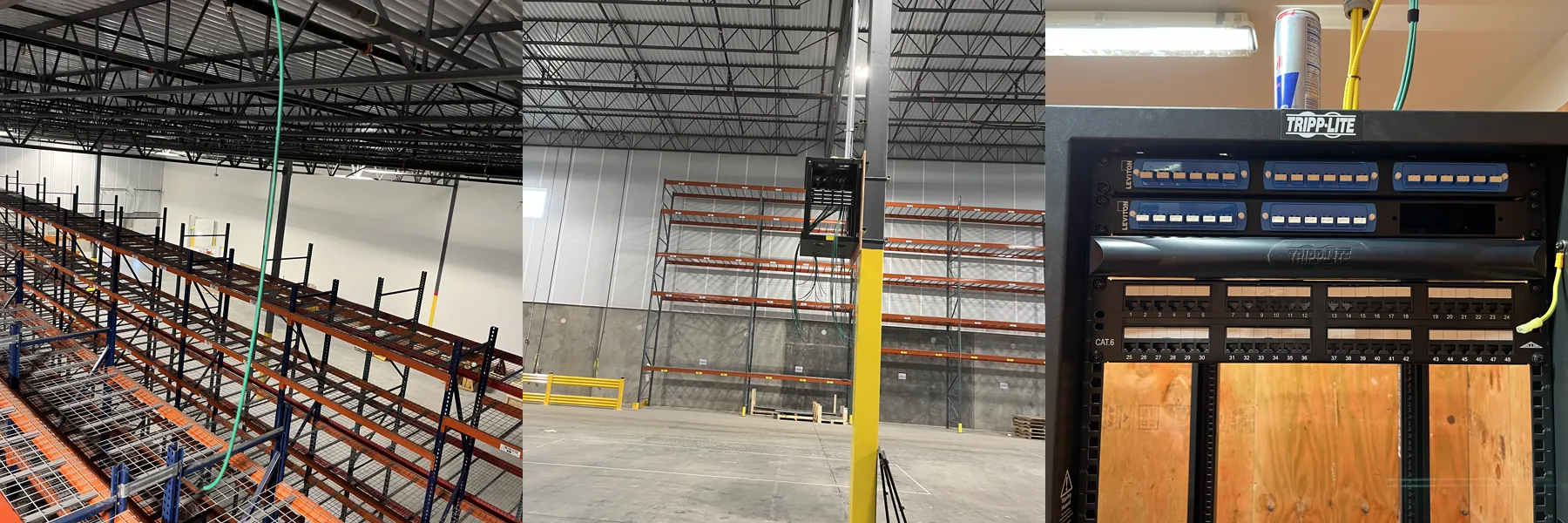

Three warehouse field photographs showing the high-bay facility, overhead cable pathways and MDF racks — 01
Facility, pathways and MDF
This evidence board establishes the high-bay environment, overhead routing across the storage infrastructure, and the communications racks receiving those pathways.

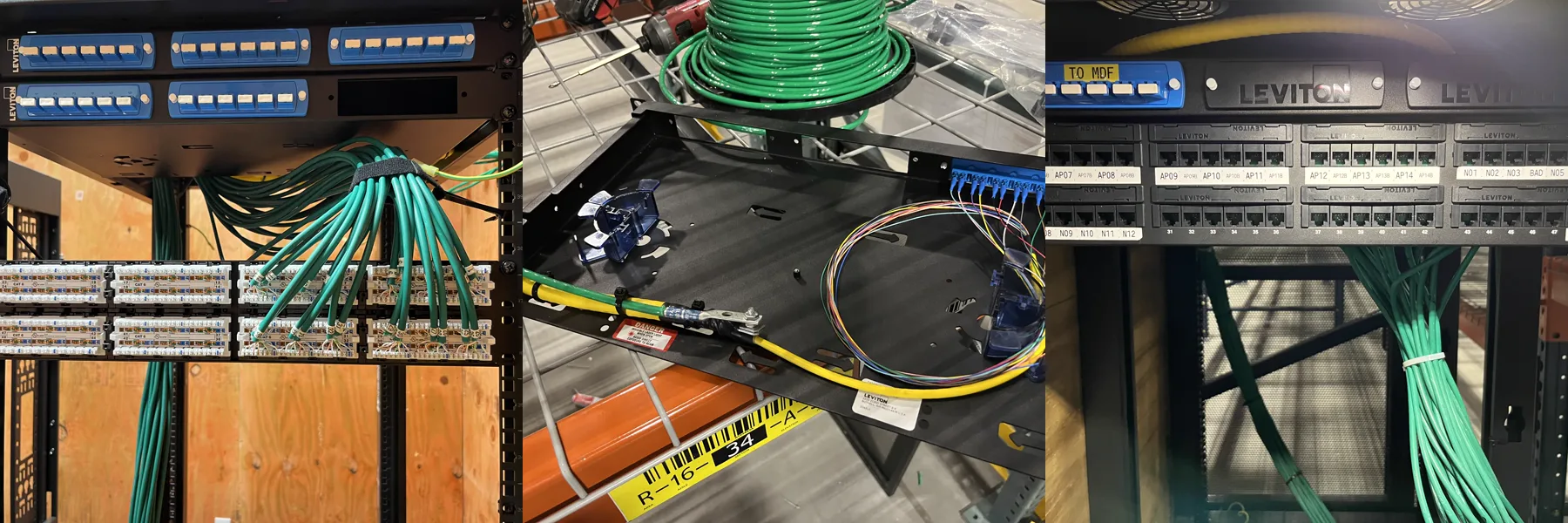

Three warehouse field photographs showing copper termination, fiber management and a completed IDF — 02
Copper, fiber and completed IDF
This evidence board follows the work into the communications spaces, showing labeled copper termination, protected fiber management, and the completed IDF cabinet.

Environment

High-bay warehouse with long overhead routes and distributed communications spaces.

Media

Copper horizontal cabling and fiber backbone infrastructure visible in the field record.

Turnover focus

Organized racks, labeled terminations and serviceable fiber and copper management.

What is intentionally not claimed

The photographs do not independently establish drop counts, schedule, test results, warranty status, client identity or business outcome. Those details remain private unless supported by a client-approved closeout record. Keeping that boundary visible makes the photographic evidence more useful, not less.

Warehouse cabling project questions

What does this warehouse cabling case study document?

The released photographs document a high-bay warehouse installation environment, overhead cable pathways, MDF and IDF rack work, copper patch-panel termination, fiber management, bonding, cable dressing, and completed communications-space infrastructure. Client-identifying and commercial details are intentionally withheld.

Why are the client name and project location withheld?

What is the difference between an MDF and an IDF?

Why do warehouses need multiple communications spaces?

What should warehouse cabling closeout include?

Do the photographs prove certification test results?

Can SRS Networks execute warehouse cabling in multiple states?

How should a buyer start a similar warehouse project?
